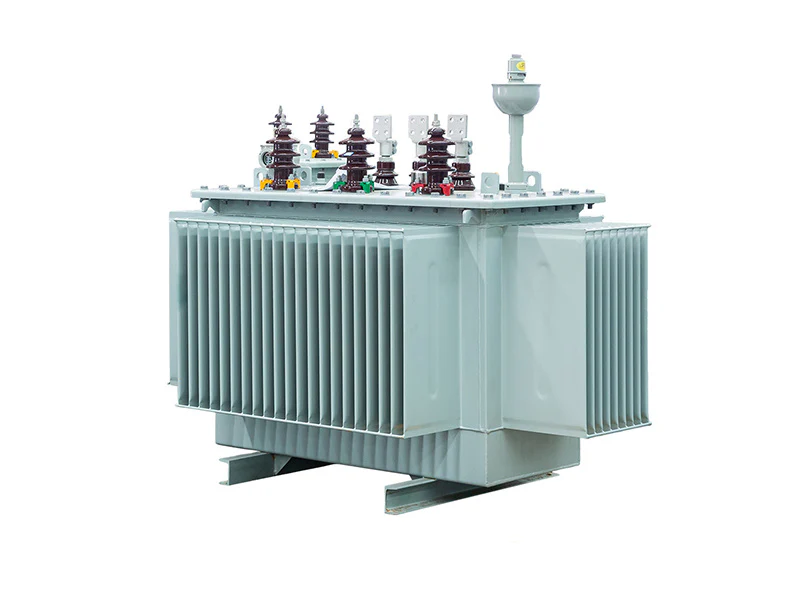

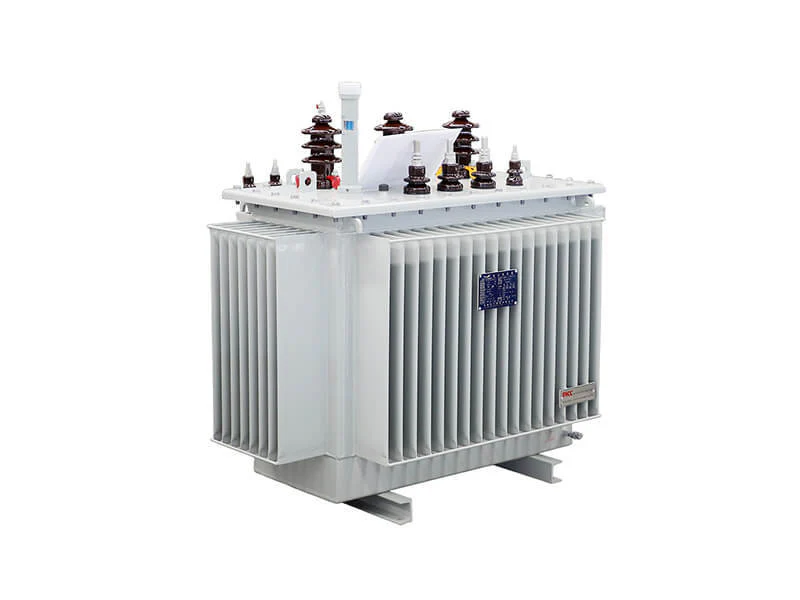

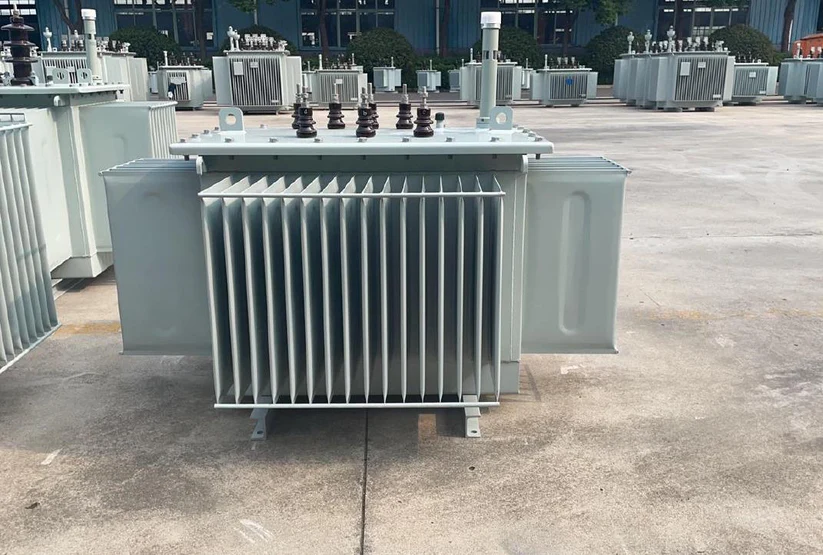

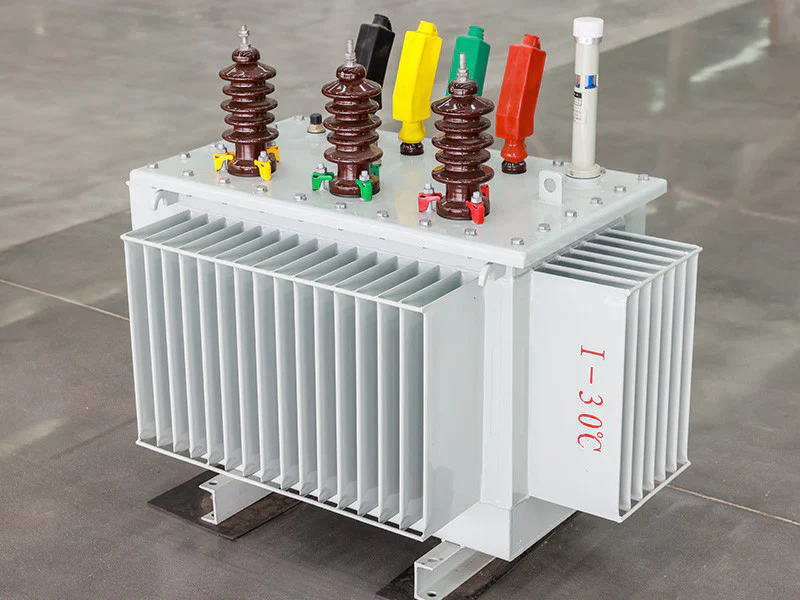

TSTY SG-M-600kva Oil Immersed Isolation Power Transformer (400-400V)
Original price was: ₦14,060,000.00.₦13,560,000.00Current price is: ₦13,560,000.00.
| Model | SG-M-600kva |
| Rated Capacity (KVA) | 600 |
| H.V | 0.4 KV |
| L.V | 0.4 KV |
| Short Circuit Impedance | 4.5% |
| Off load Losses | 1170(+15%) |
| On load Losses | 6100(±15%) |
| H.V Current (A) | 909.33 |
| L.V Current (A) | 909.33 |
| Winding Material | Copper to Copper |
| Dimension | 1535*1040*1170 mm |
| Weight | 1740 kg |
| Frequency | 50HZ |
| Vector Group | Dyn11 |
| Phase | 3phase |
| Type | Oil-immersed |
| Oil | Mineral oil |
| Core | Silicon steel sheet |
| Cooling Type | ONAN |
| Oil level thermometer | Equipped |
| Oil level indicator | Equipped |
| Pressure relief device | Equipped |
| Service Lifetime | 15-20years |
